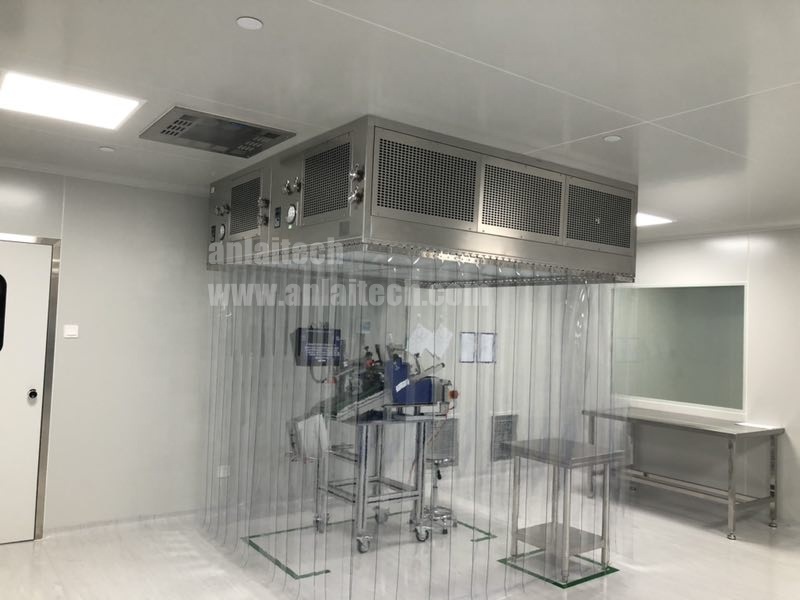

ANLAITECH Brand HEPA filter Veritcal Class 100 Laminar flow fan filter Unit
The air through the primary filter press in static pressure box by
centrifugal fan, after HEPA filter be filtered clean wind blowing
out, clean air and indoor air continuously mixed and diluted to
achieved purification effect.
Technical Parameters(HEPA FILTER INSIDE TYPE):
| Model | AL-LFU-2*2 | AL-LFU-2*4 | AL-LFU-3*4 | FFU-4*4 | ||||
Overall size W * L * H (mm) | 600 * 600 * 450 | 600* 1200*450 | 915 * 1200 * 450 | 1200 * 1200 * 450 | ||||
HEPA filter size W * L * H (mm) | 440 * 440 * 69 | 440*1040*69 | 755 * 1040 * 69 | 1040 * 1040 * 69 | ||||
| Efficiency | HEPA 0.3μm@≥99.99% OR ULPA 0.12@≥99.9995% | |||||||
| Prefilter (optional) | Washable non-woven fabric | |||||||
| Construction | Electro galvanized metal sheet OR stainless steel or high quality aluminum sheet | |||||||
| Air velocity (m/s) | 0.35~0.45 | 0.35~0.45 | 0.35~0.45 | 0.35~0.45 | ||||
| Air flow (CMH) | 410~513 | 840~1080 | 1290~1650 | 1720~2160 | ||||
| Speed control | 3 modes, 5 modes, or induction control | |||||||
| Noise (dB) | 48 ~ 50 | 48 ~ 52 | 50 ~ 56 | 52 ~ 58 | ||||
| Consumption | AC | ≤ 98 | ≤ 150 | ≤ 180 | ≤200 | |||
| DC | ≤ 65 | ≤ 90 | ≤ 130 | ≤160 | ||||
| Power | AC single phase 110/220V OR three phase 220/380V 50/60Hz Or DC 220V | |||||||
| Overload protection | Included (terminals or quick coupling are optional) | |||||||
| Weight (KG) | 28 | 40 | 47 | 55 | ||||
FEATURES:
1.Low consumption,super performance and low operation cost
2.Scientific air passage design, low resistance, low noise, save space
3.Flexible design to suit various needs
4.Safe and operation friendly
5.Muiti-level protective devices
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
About Us
Automatic production line.
Nearly 20 years experience in cleanroom industry.
We are an expert in providing customized solutions.
Timely delivery with perfect quality.
Fortune 500 companies’ choice.
Have passed ISO9001.2008 certification.
Welcome to contact with us, All inquiries will be replied within 24 hours
|
